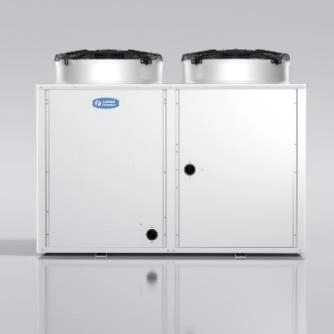

TENESUN KFXRS-80IIP/A Inverter Commercial Hot Water Heat Pump Unit

TENESUN air source heat pump water heaters are mainly composed of four major components: compressor, evaporator, condenser, and expansion valve. Its working process consists of four steps: First, the evaporator absorbs heat from the air, causing the refrigerant to evaporate into a gaseous state; then, the compressor compresses and heats the gaseous refrigerant, forming a high-temperature, high-pressure gas; next, the condenser transfers the heat from the gas to the water, heating the water; finally, the expansion valve reduces the pressure of the refrigerant, causing it to return to a liquid state, completing the cycle. Inverter technology regulates the compressor speed to provide heat on demand, avoiding energy waste caused by frequent starts and stops, and extending the equipment's lifespan.

Quantity:
Availability:





Inquiry Click here to request sample documents

Product Description

Key Parameters

Parameter	Value
Rated heating capacity	80kW (ambient temperature 20℃, inlet water temperature 15℃, outlet water temperature 55℃)
Input power	17.35kW
Energy efficiency ratio COP	4.61
Maximum outlet water temperature	60℃, meeting the hot water needs of most environmental conditions
Compressor	internationally renowned brand variable frequency compressor
Heat exchanger	independently developed and manufactured high-efficiency heat exchanger, corrosion-resistant and scale-resistant, extending service life by 20%
Throttling technology	intelligent variable frequency throttling technology automatically adjusts output power according to water volume, achieving energy savings of over 25%
Power supply specifications	3-phase 380V/50Hz
Water flow rate	13.8m3/h
Hot water production rate at normal temperature conditions	1.72 m3/h
Body dimensions	1750×1100×1550mm
Net weight	375kg
Protection class	IPX4

Applicable Scenes

Hotels, resorts, and office buildings, providing centralized hot water supply year-round and meeting high-volume demand; mixed-use complexes and factory dormitories, withstanding extreme high temperatures and supporting 24-hour continuous hot water supply, adaptable to time-of-use energy-saving modes; schools, hospitals, and large apartment buildings, providing winter heating + year-round hot water, integrated with centralized heating systems, and meeting commercial building energy standards.

Operating Instructions

Before starting, check the power supply, water lines, and unit status to ensure there are no abnormalities;
Start the unit and observe whether the operating parameters are normal;
Adjust the water temperature as needed, but do not set the water temperature too low or too high;
Regularly record operating data for maintenance and analysis.

Precautions

The installation location must be well-ventilated and protected from direct sunlight;
Take necessary precautions against freezing in low-temperature environments during winter;
Regularly clean the pipe filter and remove foreign objects from the external fins of the heat exchanger to maintain efficient operation;
Non-professional person should not disassemble the unit without authorization;
Drain the system of water when it is not in use for an extended period.

Proper operation and maintenance can extend the unit's lifespan and improve energy efficiency. Users should strictly follow the instructions in the manual and contact professional people immediately if any abnormalities occur.
