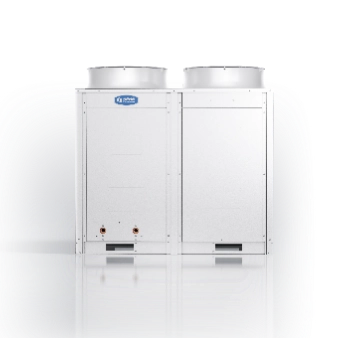

TENESUN KFXRS-42IIBP/A1 Variable Frequency Low-Temperature Commercial Hot Water Heat Pump Unit (Air Source Heat Pump)

TENESUN KFXRS-42IIBP/A1 Variable Frequency Low-Temperature Commercial Hot Water Heat Pump Unit (Air Source Heat Pump)

TENESUN low-temperature commercial variable frequency heat pump water heater delivers 43kW rated heating capacity with an outstanding COP of 4.88, reaching up to 60℃ hot water. Adopting R32 eco-friendly refrigerant and full DC inverter scroll jet enthalpy enhancement technology, it operates stably from -35℃ to 50℃. With intelligent frequency conversion throttling and high-efficiency anti-corrosion heat exchanger, it saves over 25% energy and extends service life by 20%. Ideal for hotels, swimming pools, aquaculture and hospitals, it provides 24/7 stable hot water with high safety and ultra-high energy efficiency.

Quantity:
Availability:





Inquiry Click here to request sample documents

Operating Instructions

Before starting the unit, check the power supply, water system, and unit status to ensure there are no abnormalities;
Start the unit and observe whether the operating parameters are normal;
Adjust the water temperature as needed, but do not set the water temperature too low or too high;
Regularly record operating data for maintenance and analysis purposes.

Precautions

The installation location must be well-ventilated and protected from direct sunlight;
Take necessary precautions against freezing in low-temperature environments during winter;
Regularly clean the pipe filter and remove foreign objects from the external fins of the heat exchanger to maintain efficient operation;
Non-professional person should not disassemble the unit without authorization;
Drain the system of water when it is not in use for an extended period.

Proper operation and maintenance can extend the unit's lifespan and improve energy efficiency. Users should strictly follow the instructions in the manual and contact professional people immediately if any abnormalities occur.

Parameter	Value
Rated heating capacity	43kW (ambient temperature 20℃, inlet water temperature 15℃, outlet water temperature 55℃)
Input power	8.81kW
Energy efficiency ratio COP	4.88
Maximum outlet water temperature	60℃, meeting the hot water needs of most environmental conditions
Compressor	internationally renowned brand variable frequency compressor
Heat exchanger	independently developed and manufactured high-efficiency heat exchanger, corrosion-resistant and scale-resistant, extending service life by 20%
Throttling technology	intelligent variable frequency throttling technology automatically adjusts output power according to water volume, achieving energy savings of over 25%
Power supply specifications	3-phase 380V/50Hz
Water flow rate	7.2m3/h
Hot water production rate at normal temperature	0.924 m3/h
Body size	1525×780×1210mm
Net weight	232kg
Protection class	IPX4

TENESUN low-temperature commercial heat pump water heater variable frequency unit adopts R32 environmentally friendly refrigerant and full DC variable frequency scroll jet enthalpy enhancement technology, operating stably in an ultra-wide temperature range of -35℃ to 50℃. The intelligent control system can precisely regulate water temperature, suitable for various places such as residences, shopping malls, and hotels, providing stable hot water 24 hours a day.

In settings such as swimming pools, aquaculture farms, and hospitals, there is a high and continuous demand for hot water. Traditional heating methods (such as electric heating or boilers) have drawbacks such as high energy consumption and numerous safety hazards.However, TENSUN air source heat pump water heaters utilize free heat from the air, achieving an energy efficiency ratio of 300%-400%, meaning that one kilowatt-hour of electricity can generate the equivalent of 3-4 kilowatt-hours of heat. Furthermore, its operation does not produce open flames or harmful gases, significantly improving safety.
