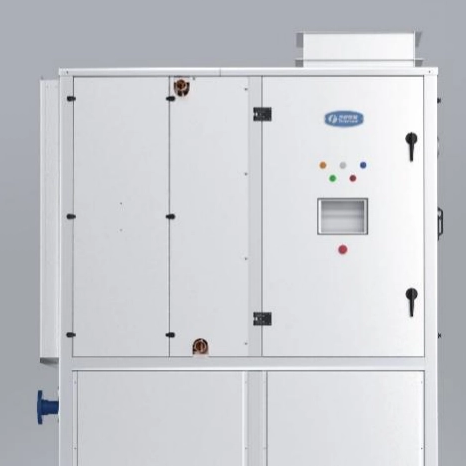

TENESUN’s Five-in-One Variable Frequency Swimming Pool Dehumidification and Constant Temperature Heat Pump Unit is a core equipment of a comprehensive energy solution specifically designed for indoor swimming pool environments.With its integrated "five-in-one" advantages and variable frequency energy-saving technology, it overcomes the limitations of traditional swimming pool equipment, which often suffers from single functionality and high energy consumption, providing efficient, comfortable, and environmentally friendly operation for various swimming pool facilities. This unit integrates dehumidification, cooling, heating, fresh air supply and exhaust, pool water heating, and heat recovery functions. Through system integration design and intelligent control, it achieves comprehensive and precise control of the swimming pool environment and water temperature, and is widely used in various commercial and public swimming pool scenarios such as schools, gymnasiums, hotels, and fitness centers.
The integration of core functions is a significant feature of this unit, truly achieving "multi-functionality in one machine." In terms of humidity control, the unit precisely removes humid air from the swimming pool interior through condensation dehumidification technology, stabilizing the humidity in the optimal range of 50%-60%, effectively inhibiting bacterial growth and wall mold, and protecting swimmers' respiratory health. For temperature regulation, it can flexibly switch between cooling or heating modes according to seasonal needs, cooling the venue in summer and providing stable heating in winter. Combined with the fresh air supply and exhaust system, it continuously introduces fresh air and exhausts stale air, ensuring that indoor air quality meets standards. At the same time, the unit efficiently recovers latent heat from humid air through heat recovery technology, using it for swimming pool water heating, achieving energy recycling and significantly reducing energy consumption while meeting the constant temperature requirements of the pool water.
| Parameter | Value |
|---|---|
| Dehumidification capacity | 15kg/h |
| Cooling capacity | 25kW |
| Heating capacity | 28kW |
| Rated power | 9.2kW |
| Indoor unit size (length×width×height) | 1495×775×1550mm |
| Indoor unit weight | 550kg |
| Indoor unit noise level | 55dB(A) |
| Safety protection | high and low pressure protection, exhaust high temperature protection, anti-freeze protection, compressor overheating and overcurrent protection, reverse phase protection, etc. |
Inverter technology and energy-saving design are the core competitive advantages of the unit. The inverter control technology dynamically adjusts the operating power according to the actual load of the swimming pool, avoiding the energy waste caused by frequent starts and stops of traditional fixed-frequency equipment. The comprehensive energy efficiency ratio (COP) is as high as 10, and the operating cost is only 1/4 of that of gas and electric heating equipment.
Compared with traditional ventilation and dehumidification methods, it can save 40%-60% of operating costs on average, and there are zero pollution emissions throughout the process, fully conforming to the concept of green and environmentally friendly development. In terms of structural design, the unit adopts a multi-stage modular design, effectively isolating the heat exchange system, piping, and air supply and exhaust subsystems, fundamentally preventing chlorine-containing air from corroding components. Combined with corrosion-resistant special heat exchangers, this significantly extends the service life of the unit.
Intelligent control and system adaptability further enhance the product's practicality. The unit is equipped with a microcomputer controller, enabling fully automatic operation. By detecting indoor and outdoor environmental parameters, it automatically adjusts the operating mode, eliminating the need for dedicated personnel. It can also be integrated into building control systems for remote management. In terms of application scenarios, it supports modular combination installation, allowing for flexible matching of the number of units based on the size of the swimming pool. It can also be integrated with commercial hot water heat pumps, heating and cooling heat pumps, and other equipment to form a comprehensive energy system, meeting diverse needs such as swimming pool temperature control, shower hot water, and venue heating and cooling.
TENESUN’s Five-in-One Variable Frequency Swimming Pool Dehumidification and Constant Temperature Heat Pump Unit is a core equipment of a comprehensive energy solution specifically designed for indoor swimming pool environments.With its integrated "five-in-one" advantages and variable frequency energy-saving technology, it overcomes the limitations of traditional swimming pool equipment, which often suffers from single functionality and high energy consumption, providing efficient, comfortable, and environmentally friendly operation for various swimming pool facilities. This unit integrates dehumidification, cooling, heating, fresh air supply and exhaust, pool water heating, and heat recovery functions. Through system integration design and intelligent control, it achieves comprehensive and precise control of the swimming pool environment and water temperature, and is widely used in various commercial and public swimming pool scenarios such as schools, gymnasiums, hotels, and fitness centers.
The integration of core functions is a significant feature of this unit, truly achieving "multi-functionality in one machine." In terms of humidity control, the unit precisely removes humid air from the swimming pool interior through condensation dehumidification technology, stabilizing the humidity in the optimal range of 50%-60%, effectively inhibiting bacterial growth and wall mold, and protecting swimmers' respiratory health. For temperature regulation, it can flexibly switch between cooling or heating modes according to seasonal needs, cooling the venue in summer and providing stable heating in winter. Combined with the fresh air supply and exhaust system, it continuously introduces fresh air and exhausts stale air, ensuring that indoor air quality meets standards. At the same time, the unit efficiently recovers latent heat from humid air through heat recovery technology, using it for swimming pool water heating, achieving energy recycling and significantly reducing energy consumption while meeting the constant temperature requirements of the pool water.
| Parameter | Value |
|---|---|
| Dehumidification capacity | 15kg/h |
| Cooling capacity | 25kW |
| Heating capacity | 28kW |
| Rated power | 9.2kW |
| Indoor unit size (length×width×height) | 1495×775×1550mm |
| Indoor unit weight | 550kg |
| Indoor unit noise level | 55dB(A) |
| Safety protection | high and low pressure protection, exhaust high temperature protection, anti-freeze protection, compressor overheating and overcurrent protection, reverse phase protection, etc. |
Inverter technology and energy-saving design are the core competitive advantages of the unit. The inverter control technology dynamically adjusts the operating power according to the actual load of the swimming pool, avoiding the energy waste caused by frequent starts and stops of traditional fixed-frequency equipment. The comprehensive energy efficiency ratio (COP) is as high as 10, and the operating cost is only 1/4 of that of gas and electric heating equipment.
Compared with traditional ventilation and dehumidification methods, it can save 40%-60% of operating costs on average, and there are zero pollution emissions throughout the process, fully conforming to the concept of green and environmentally friendly development. In terms of structural design, the unit adopts a multi-stage modular design, effectively isolating the heat exchange system, piping, and air supply and exhaust subsystems, fundamentally preventing chlorine-containing air from corroding components. Combined with corrosion-resistant special heat exchangers, this significantly extends the service life of the unit.
Intelligent control and system adaptability further enhance the product's practicality. The unit is equipped with a microcomputer controller, enabling fully automatic operation. By detecting indoor and outdoor environmental parameters, it automatically adjusts the operating mode, eliminating the need for dedicated personnel. It can also be integrated into building control systems for remote management. In terms of application scenarios, it supports modular combination installation, allowing for flexible matching of the number of units based on the size of the swimming pool. It can also be integrated with commercial hot water heat pumps, heating and cooling heat pumps, and other equipment to form a comprehensive energy system, meeting diverse needs such as swimming pool temperature control, shower hot water, and venue heating and cooling.
